Pitman for Polaris Scrambler/Sportsman

JAY PARTS PITMAN RACING FOR POLARIS SCRAMBLER 850/ 1000 & POLARIS SPORTSMAN 550/850/1000 WITH EPS FOR THE REAL HARDCORE RACING DRIVER

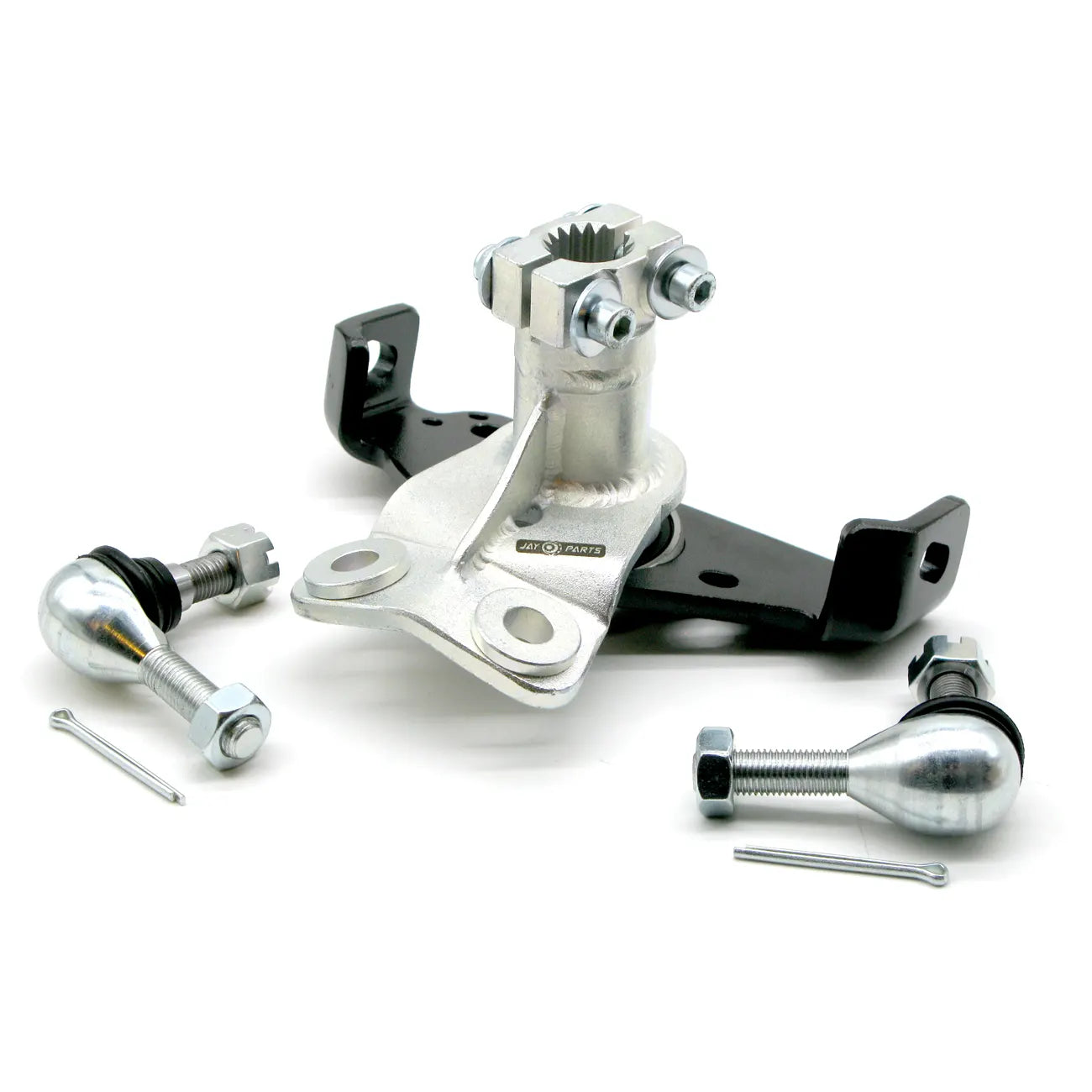

The JAY PARTS Pitman is made of high-strength steel and the highlight is the double clamping, conical guidance of the tie rods, reinforcement by a gusset plate and the high quality of the material.

WHAT IS THE PROBLEM RESOLVED?
Steering play is 80% a worn Pitman. The models before 2013 was without clamping and from 2014 was provided with a clamp. The best way to check it is if someone moves the handlebars and you are watching with a flashlight just under the power steering the teeth. 1 mm play between Pitman and gearing is 8 - 10mm at the handlebar end!

• Gusset plate
• S355 steel
• Double clamping
• FAG bearing custom made
• Made in Europe
• Conical guidance of the tie rod ends

Replaces article number: 2205364, 1823762

On models from 2009 - 2012 adjustments may be necessary to put steering lock in the pitman, holes are provided.

The installation by your specialist workshop is advisable and is recommended.

Compatible with:
Polaris Scrambler 850 & 1000, 2013 -
Polaris Sportsman 550 & 850 & 1000, 2009 "“
With EPS
